RFID Readers
Copyright Fidelity Technologies Pte Ltd May 2024

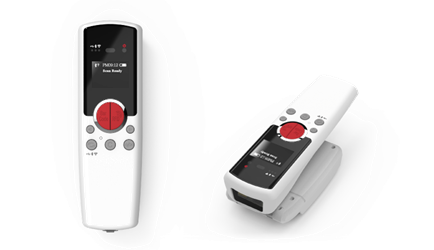

AT188N
Highlights:
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID HF 13.56MHz ISO15693, MIFARE, ISO14443 A/B
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C
- 1D or 2D Barcode Scanner
- Bluetooth Class 4.1 Classic (HID/SPP)
- USB
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID HF 13.56MHz ISO15693, MIFARE, ISO14443 A/B
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C
- 1D or 2D Barcode Scanner
- Bluetooth Class 4.1 Classic (HID/SPP)
- USB

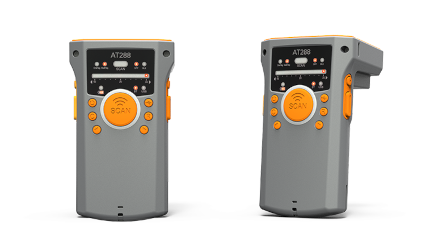

AT288N
Highlights:
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C/6B
(Option)
- Bluetooth Class 4.1 Classic (HID/SPP)
- Cradle
- USB
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C/6B
(Option)
- Bluetooth Class 4.1 Classic (HID/SPP)
- Cradle
- USB
AT388
Highlights:
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C
- 1D or 2D Barcode Scanner
- WLAN (802.11 b/g/n Compliant)
- Bluetooth Class 4.1 Classic (HID / SPP), BLE (Option)
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C
- 1D or 2D Barcode Scanner
- WLAN (802.11 b/g/n Compliant)
- Bluetooth Class 4.1 Classic (HID / SPP), BLE (Option)
ATS100
Highlights:
- RFID UHF GEN2, ISO / IEC 18000 - 6C
- 2D Barcode Scanner
- Bluetooth V4.1 Class 1 (HID, SPP, BLE)
- RFID UHF GEN2, ISO / IEC 18000 - 6C
- 2D Barcode Scanner
- Bluetooth V4.1 Class 1 (HID, SPP, BLE)

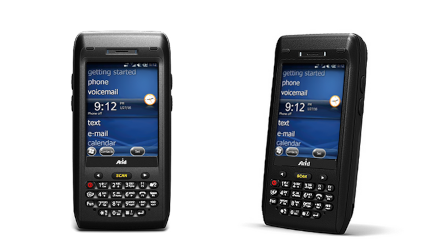

AT880
Highlights:
- Windows CE 5.0 / Windows Embedded handheld 6.5
- Marvell™ PXA 320 806MHz
- Memory 256MB (512MB Option) RAM / 512MB ROM
- RFID UHF 900MHz GEN2, ISO/IEC 18000-6C
- HF 13.56MHz ISO15693, MIFARE, ISO14443 A/B (Option)
- 1D or 2D Barcode Scanner
- WLAN(802.11 a/b/g/n Option)
- Bluetooth Class II, v2.1 + EDR
- Camera with Flash | GPS
- Windows CE 5.0 / Windows Embedded handheld 6.5
- Marvell™ PXA 320 806MHz
- Memory 256MB (512MB Option) RAM / 512MB ROM
- RFID UHF 900MHz GEN2, ISO/IEC 18000-6C
- HF 13.56MHz ISO15693, MIFARE, ISO14443 A/B (Option)
- 1D or 2D Barcode Scanner
- WLAN(802.11 a/b/g/n Option)
- Bluetooth Class II, v2.1 + EDR
- Camera with Flash | GPS
Product Specifications Table
| Product | AT188N | AT288N | AT388 | ATS100 | AT880N |
| Processor | ARM7 Core | ARM7 Core | ARM7 Core | ARM7 Core | Marvell™ PXA 320 806MHz |
| Operating Systems | Windows CE 5.0 / Windows Embedded 6.5 |
||||
| Memory ROM (KB) RAM (KB) Ext (Mb) |
256 64 8 |
256 64 8 |
256 64 8 |
512MB 512MB |
|
| Physical Dimension (WxLxH)mm Weight (g) |
50x115x35 160 (w battery) |
53.5(61)x105.6x23.2(60.3) 190 (w battery) |
50x164x30(54) 210 (w/o battery) |
76.1x173.7x139.8 (w/o Quad lock) 420 (w battery) |
79x159x27.7(35.2) 280 (w/o battery) |
| Display | LCD & LED Indicator | LED Indicator | LCD & LED Indicator | 3.5"QVGA Backlight, TFT LCD 262K Color, 240×320Pixel, |
|
| Power Adapter Battery (Rechargeable) |
Input AC100V - 240V Output DC 5V 2A 1100mAh Lithium-Ion |
Input AC100V - 240V Output DC 5V 2A 2200mAh Lithium-Ion |
3200mAh Lithium-Ion |
Input DC 5V 2A 5200mAh Lithium-Ion |
Input AC100V ~ 240V Output DC 5V 3A 2970mAh Lithium Polymer 80mAh Lithium Polymer (B/U) |
| Standard I/O Port Bluetooth USB Client WLAN VCP HID |
Yes Yes |
Yes Yes |
Yes Yes Yes |
Type C Yes Yes |
Class 1.1 Client/Host & Serial via gender cable or Cradle |
| Audio | Buzzer | Buzzer | Buzzer | Buzzer | Phone Receiver, Speaker, Ear Jack, Microphone |
| Expansion Slot MicroSD (SHDC) SIM SAM |
Yes Yes Yes |
||||
| Data Capture Barcode RFID (UHF) RFID (HF 13.56MHz) Camera |
1D or 2D UHF-Spec A |
UHF-Spec B |
1D or 2D UHF-Spec A |
1D or 2D UHF-Spec C |
1D or 2D UHF-Spec A HF-Spec A 3Mp. Auto Focus with Flash |
| Communication WLAN Bluetooth Radio GPS |
Class 4.1 Classic (HID/SPP), BLE (Option) |
Class 4.1 Classic (HID/SPP), BLE (Option) |
802.11 b / g / n Compliant Class 4.1 Classic (HID/SPP), BLE (Option) |
Class 4.1 Classic (HID,SPP,BLE) |
802.11 b / g / n Option Class II, v2.1 + EDR MODEM 3G (GSM / GPRS / EDGE / WCDMA / HSPA+) Internal Antenna (GPS + Glonass Option) |
| Environment Operating Temp Storage Temp Charging Temp Humidity Drop (to concrete) Dust & Water Proof |
-10⁰C to 45⁰C -30⁰C to 70⁰C 95% non-condensing 1.2M IP65 |
-10⁰C to 45⁰C -30⁰C to 70⁰C 95% non-condensing 1.5M IP65 |
-10⁰C to 45⁰C -30⁰C to 70⁰C 95% non-condensing 1.5M IP65 |
-20⁰C to 60⁰C -30⁰C to 70⁰C 0⁰C to 45⁰C 95% non-condensing 1.5M IP65 |
-20⁰C to 60⁰C -30⁰C to 70⁰C 95% non-condensing 1.5M IP65 |
| Notification |
LED, Buzzer, LCD, Vibrator | LED, Buzzer |
LED, Buzzer, LCD, Vibrator | LEDx3, Buzzer, Vibrator |
Vibrator and LED, Speaker |
| Accessories (Standard) Adapter AC Cable USB Cable Handstrap Battery Stylus Pen Protection Film |
Yes Yes |
Yes Yes Yes |
Yes Yes |
Yes (Type-C Cable) Yes |
Yes Yes Yes Yes Yes |
| Accessories (Optional) Cradle Gun Handle QUAD LOCK® RJ9 to USB Cable Adaptor MicroUSB-RJ9 |
Yes |
Yes Yes |
Yes Yes Yes |
Yes Yes (Body, UHF / HF option) |
|
| Optional Features Cradle Standard I/F Cradle Ethernet Option Gun Handle Battery Mount |
Mini USB Client. DC Power Jack/ Extra Battery Charger |
Charge only (Option), USB type-C Lithium-Ion 5,200mAh QUAD LOCK® Mount Mechanism |
USB 1.1 Host / USB Client / DC Power Jack / Extra Battery Charger /Serial (RS232) via gender cable RJ-45 Ethernet Interface Lithium-Ion 5,200mAh |
UHF-Spec A
Frequency : CE 865MHz ~ 868MHz
FCC 902MHz ~ 928MHz
Reading range : 0M ~ 6M (According to Tag & Environment)
Writing range : 0M ~ 0.5M (According to Tag & Environment)
RF output : 1W (MAX)
Protocol : GEN2, ISO / IEC 18000 - 6C
Special function : Anti - Collision
FCC 902MHz ~ 928MHz
Reading range : 0M ~ 6M (According to Tag & Environment)
Writing range : 0M ~ 0.5M (According to Tag & Environment)
RF output : 1W (MAX)
Protocol : GEN2, ISO / IEC 18000 - 6C
Special function : Anti - Collision
UHF-Spec B
Frequency : CE 865MHz ~ 868MHz
FCC 902MHz ~ 928MHz
Reading range : 0M ~ 3/5M (According to Tag & Environment)
Writing range : 0M ~ 0.5M (According to Tag & Environment)
RF output : 1W (MAX)
Protocol : GEN2, ISO / IEC 18000-6C / 6B (Option)
Special function : Anti - Collision
FCC 902MHz ~ 928MHz
Reading range : 0M ~ 3/5M (According to Tag & Environment)
Writing range : 0M ~ 0.5M (According to Tag & Environment)
RF output : 1W (MAX)
Protocol : GEN2, ISO / IEC 18000-6C / 6B (Option)
Special function : Anti - Collision
UHF-Spec C
Frequency : 902-928MHz (US)
865-868MHz (EU)
916-921MHz (Japan 1W LBT)
916-923MHz (Japan 0.25W LBT)
Reading range : 0M ~ 5M (According to Tag & Environment)
RF output : 1W (MAX)
Protocol : GEN2, ISO / IEC 18000 - 6C
865-868MHz (EU)
916-921MHz (Japan 1W LBT)
916-923MHz (Japan 0.25W LBT)
Reading range : 0M ~ 5M (According to Tag & Environment)
RF output : 1W (MAX)
Protocol : GEN2, ISO / IEC 18000 - 6C
HF-Spec A
Applied RFID Tag : ISO15693, MIFARE, ISO14443 A / B (Option)
Reading range : According to Tag 0cm ~ 5cm (Internal or External)
Reading range : According to Tag 0cm ~ 5cm (Internal or External)
